Water Cooled Chiller

TMH

Water cooled chiller with Turbocor centrifugal compressors for indoor installation

Cooling capacity: 200 – 2500 kW (57 – 711 RT)

• Centrifugal compressors
• Flooded evaporator (R134a)
• Dry expansion evaporator (HFO-1234ze)
Length: 2800 – 6000 mm (9 – 20 ft)
Width: from 1000 to 2250 mm (7 ft)
Height: 1830 – 2100 mm (6 – 6.8 ft)
Operating Weight: 1841 – 10236 kg (4058  – 22567 lb)

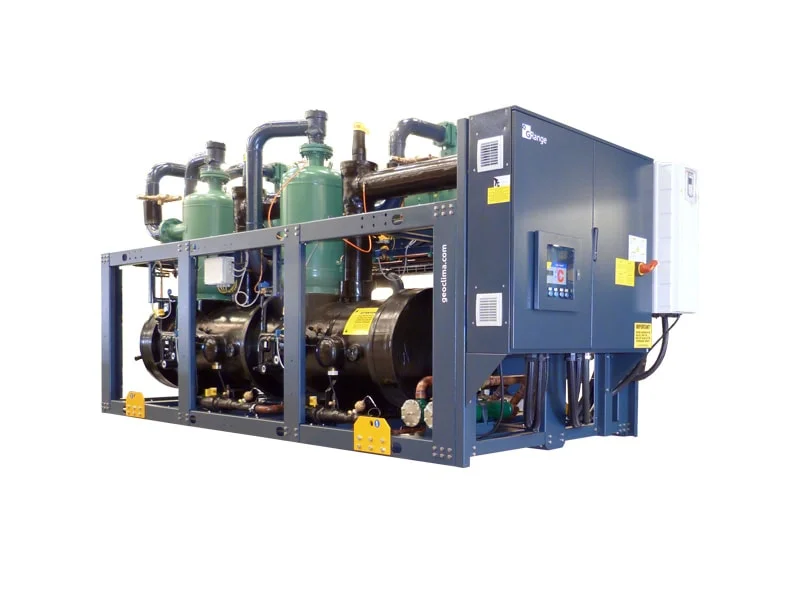

GHH

Water cooled chiller with screw compressors for indoor installation

Cooling capacity: 68 – 1850 kW (20 – 526 RT)

• Screw compressors
• Dry expansion evaporator
Length: 3000 – 5000 mm (9.8  -16.4 ft)
Width: 800 – 1960 mm (2.6 – 6.4 ft)
Height: 1610 – 2650 mm (5 -8.6 ft)
Operating Weight: 1727 – 13204 kg (3807 – 29110 lb)

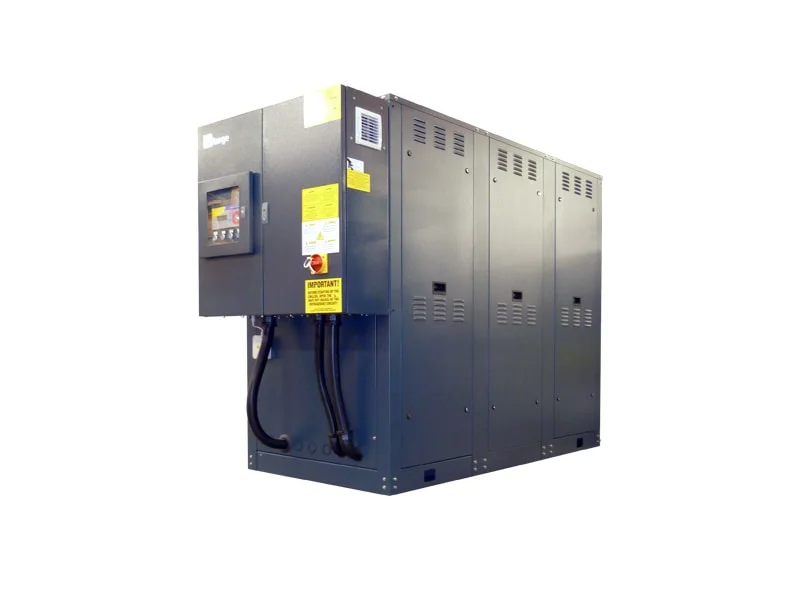

VHH

Water cooled chiller with scroll or reciprocating compressors for indoor installation

Cooling capacity: 19 – 676 kW (5.4 – 192 RT)

• Scroll compressors (R410A)
• Reciprocating compressors (R290 or HFO-1234ze)
• Dry expansion evaporator
Length: 1450 – 4110 mm (4.7 – 13.4 ft)
Width: 800 – 1400 mm (2.6  -4.5 ft)
Height: 1560 – 2300 mm (5 – 7.5 ft)
Operating Weight: 554 – 4176 kg (1221 – 9206 lb)
